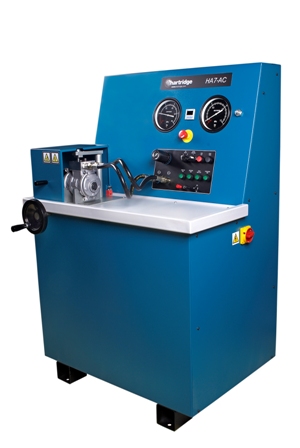

HA7-AC test stand
The Hartridge Air Conditioning Compressor Test Stand The HA7-AC is designed to provide aftermarket air conditioning professionals with cost-effective, simple to use, flexible testing and maintenance solutions.
Denso Approved; HA7-AC with Denso 7SB (U) and 10PA compressors tests additional compressors with a wide range of optional accessories. |
 |
Features
• 3.7 kW AC drive.
• Timed run-in.
• Emission measurement.
• Valve leak measurement.
• Measuring IQ.
• Interlocking protection. |
Advantages
• Cost effective
• Simple and flexible to use
• Denso Approved.
• Tested a wide range of compressors |
Technical description
Instrumentation
Low pressure gauge
High pressure gauge
Digital timer resolution |
150mm diameter, -1 to 4 bar / -0.1 to 0.4MPa. Scale resolution 0.1bar /
0.01MPa.150mm diameter, -1 to 15 bar / -0.1 to 1.5MPa. Scale resolution 0.5bar /
0.05 MPa. Range 99 min 59 sec 1 second. |
Installation
Electric supply&air supply |
3-phase & Earth, 400V ± 10%, 10A continuous, 50 Hz. Clean, pressurized air drying, minimum pressure 5.5 bar (80 psi) / maximum value 8 bar (116 psi). |
Order
The HA7-AC is supplied with the following standard accessories :
• Clamp type.
• Drive belt.
• 7SB (U) and 10PA compressor adapter block (fixed to the top of the compressor to connect the hose).
• Electrical cable assembly (electrical supply of control valve).
• Operator's Manual. |
Transit
Total weight: 325kgs
Net weight: 215kgs
Case size: 127x100 x176 cms |
|
