Delphi EUI
HOME

Delphi EUI

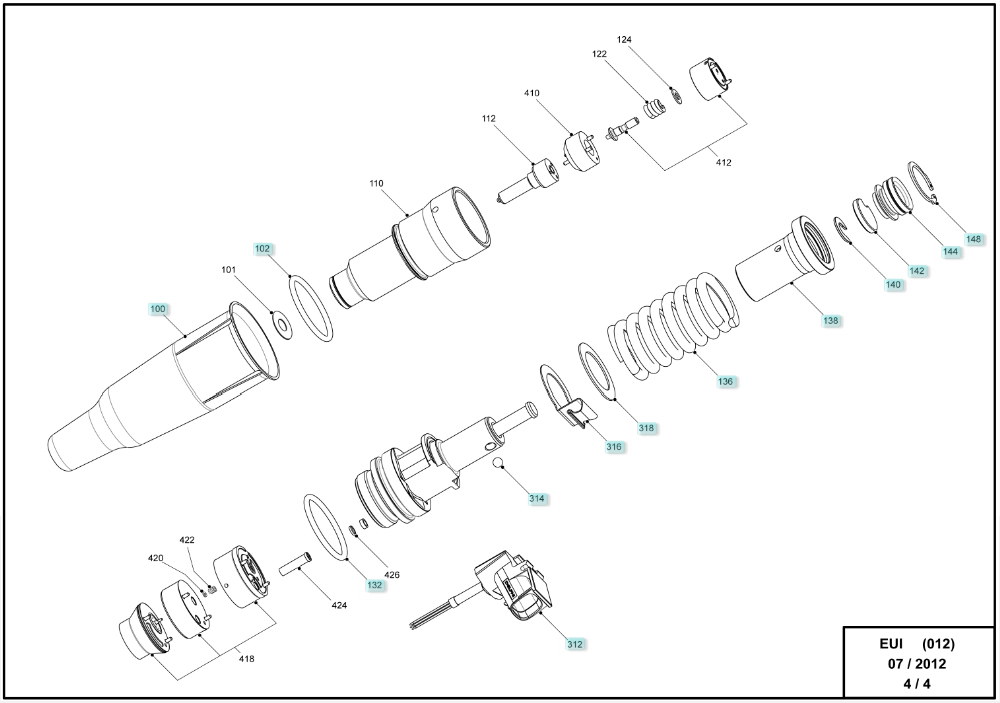

E3 (BEBE4D19002) (33800-84820)

No Part number Part name QT.
1

7204-0276

Protection Sleeve

 1
2

7200-0054

O Ring

 1
3

7207-0094

Capnut

 1
4

L311PBC

Nozzle

 1
5

7207-0117

Spring

 1
6

NOTE-12-A5

Shim

 0
7

7207-0118T

Shim

 1
8

7200-0053

O Ring

 1
9

7204-0512

Spring

 1
10

7204-0498

Spring Guide

 1
11

7204-0492

C washer

 1
12

7204-0410

Thrust Pad

 1
13

7204-0412

Thrust socket

 1
14

7200-0024

Circlip

 1
15

7204-0983

ASSY - Header

 1
16

7200-0059

Ball

 1
17

7204-0788

Clip - Header Retaining

 1
18

7204-0506

Clip Support Washer

 1
19

7207-0138

Assy - Spring Chamber

 1
20

7207-0119

Assy - Backing Piston

 1
21

7135-588

KIT - Actuator Assy

 1
22

NOTE-12-A6

Shim

 0
23

7206-0248P

Shim

 1
24

7206-0246

Dual Valve Spring

 1
25

7204-0663

Insulating Sleeve

 1
26

7204-0619

Seal - Terminal

 1


E3 (BEBE4D21001) (33800-84830)

No Part number Part name QT.
1

7204-0276

Protection Sleeve

 1
2

7200-0054

O Ring

 1
3

7207-0094

Capnut

 1
4

L311PBC

Nozzle

 1
5

7207-0117

Spring

 1
6

NOTE-12-A5

Shim

 0
7

7207-0118T

Shim

 1
8

7200-0053

O Ring

 1
9

7204-0512

Spring

 1
10

7204-0498

Spring Guide

 1
11

7204-0492

C washer

 1
12

7204-0410

Thrust Pad

 1
13

7204-0412

Thrust socket

 1
14

7200-0024

Circlip

 1
15

7204-0983

ASSY - Header

 1
16

7200-0059

Ball

 1
17

7204-0788

Clip - Header Retaining

 1
18

7204-0506

Clip Support Washer

 1
19

7207-0138

Assy - Spring Chamber

 1
20

7207-0119

Assy - Backing Piston

 1
21

7135-588

KIT - Actuator Assy

 1
22

NOTE-12-A6

Shim

 0
23

7206-0248P

Shim

 1
24

7206-0246

Dual Valve Spring

 1
25

7204-0663

Insulating Sleeve

 1
26

7204-0619

Seal - Terminal

 1
