Delphi EUI
HOME

Delphi EUI

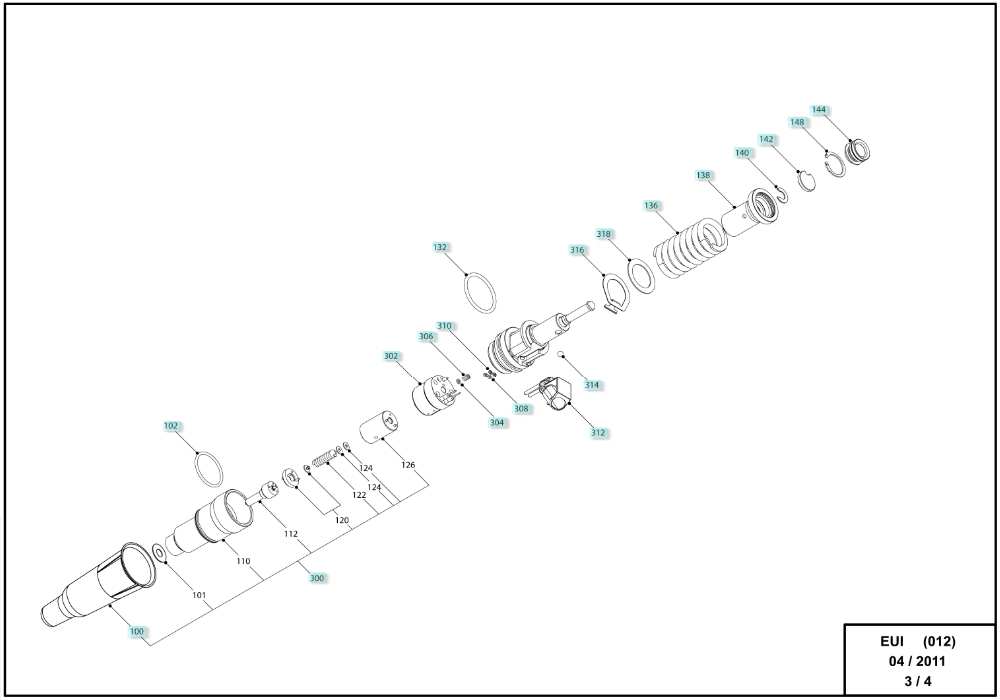

E1 type (BEBE4C09101) (33800-84400)

No Part number Part name QT.
1

7204-0276

Protection Sleeve

 1
2

7200-0054

O Ring

 1
3

7200-0053

O Ring

 1
4

7204-0512

Spring

 1
5

7204-0498

Spring Guide

 1
6

7204-0492

C washer

 1
7

7204-0410

Thrust Pad

 1
8

7204-0412

Thrust Socket

 1
9

7200-0024

Circlip

 1
10

7207-0436

Nozzle Capsule

 1
11

7206-0433

Actuator Assembly

 1
12

Note-12-A4

Shim

 0
13

7206-0160

Actuator Spring

 1
14

7200-0077

Seal

 2
15

7204-0375

Backing Ring

 2
16

7204-0529

Connector

 1
17

7200-0059

Ball

 1
18

7204-0526

Spring Clip

 1
19

7204-0506

Clip Support Washer

 1
20

L232PBC

Nozzle

 1


E1 type (BEBE4C09102) (33800-84410)

No Part number Part name QT.
1

7204-0276

Protection Sleeve

 1
2

7200-0054

O Ring

 1
3

7200-0053

O Ring

 1
4

7204-0512

Spring

 1
5

7204-0498

Spring Guide

 1
6

7204-0492

C washer

 1
7

7204-0410

Thrust Pad

 1
8

7204-0412

Thrust Socket

 1
9

7200-0024

Circlip

 1
10

7207-0436

Nozzle Capsule

 1
11

7206-0433

Actuator Assembly

 1
12

Note-12-A4

Shim

 0
13

7206-0160

Actuator Spring

 1
14

7200-0077

Seal

 2
15

7204-0375

Backing Ring

 2
16

7204-0529

Connector

 1
17

7200-0059

Ball

 1
18

7204-0526

Spring Clip

 1
19

7204-0506

Clip Support Washer

 1
20

L232PBC

Nozzle

 1
